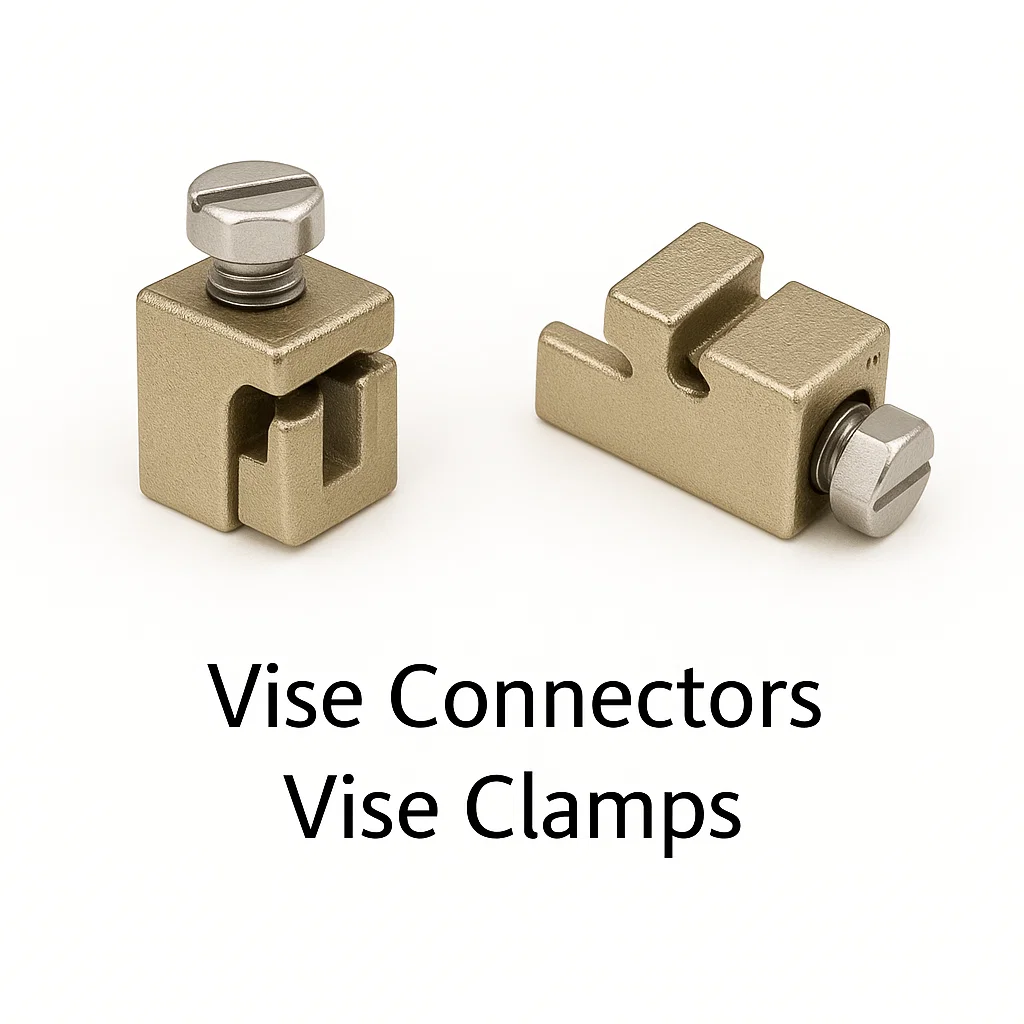

Durable and Precision-Engineered Vise Connectors & Vise Clamps

Tightening the fastener draws the connector jaws together, developing controlled pressure over the gripped surfaces. Correct groove shape, alignment, contact area, material and bolt preload prevent slip while maintaining the intended electrical or mechanical interface. Out-of-range components or uneven tightening can concentrate load and damage the connector or conductor.

Each design has a defined grip range based on actual diameter, cross-section, profile and material. Nominal size alone may not identify strand construction or outside diameter. Provide data for both connected elements so Conex can confirm jaw travel, groove fit, thread engagement, contact area and required clamping force.

Yes, when the connector is specifically engineered and qualified for the conductor materials and electrical duty. Electrical versions require suitable contact geometry, low resistance, oxide control and stable preload. A general mechanical vise clamp should not be assumed current-carrying. Continuous current, fault duty, conductor type and applicable standard must be stated.

Follow the approved installation procedure for the conductor material and connector. Aluminium contact zones normally require controlled cleaning to remove contamination and oxide, followed by approved joint compound where specified. Prepared surfaces should remain clean, correctly positioned and protected from re-oxidation until the clamp is tightened to the specified torque.

Use the value specified for the exact connector, bolt size, material, washer arrangement, thread condition and lubricant. Generic torque can produce insufficient grip, high electrical resistance, stripped threads or deformed jaws. Tightening should be progressive and aligned, using a calibrated torque wrench, with any re-torque requirement defined by the installation standard.

Slip resistance depends on jaw geometry, contact length, surface condition, fastener preload, material hardness and the direction of applied load. Required pull or shear loads and safety factors should be supplied. Testing may use representative conductors or components to verify that grip is maintained without unacceptable strand damage or permanent deformation.

For current-carrying connectors, resistance is controlled through compatible materials, clean interfaces, adequate contact area, oxide management and stable clamping pressure. Poor fit, contamination or preload relaxation can create hot spots. Project requirements may include resistance and temperature-rise measurements, including checks after thermal cycling or mechanical conditioning.

They can be specified for outdoor environments when alloy, hardware and protection suit the exposure. Salt, industrial pollution, standing water and dissimilar-metal contact increase corrosion risk. Surface treatment, joint compound, compatible fasteners, sealing or protective covers may be required for long-term service in coastal or contaminated locations.

Avoid unapproved contact between aluminium and copper, steel or other dissimilar metals in wet conditions. Use compatible materials, qualified bimetallic transitions, isolating components, inhibitors, sealants and coatings where required. The connector body, gripped parts, bolt, washer and support structure should be reviewed as one electrochemical system.

They can be designed for cyclic service, but vibration amplitude, frequency, current loading and temperature range must be known. Connector stiffness, locking hardware, contact geometry and maintained preload influence performance. Qualification may include vibration, thermal-cycle, resistance and mechanical retention tests, followed by inspection for loosening, fretting or cracking.

Reuse should only occur when permitted by the manufacturer and asset owner. Previous torque, jaw deformation, thread wear, corrosion, compound contamination and conductor impressions can reduce reliability. Critical electrical joints are often replaced unless the connector is explicitly reusable and passes inspection with required hardware or compound renewed.

Inspection can include material verification, jaw profile, size range, bolt and thread fit, alignment, surface condition and finish. Functional checks may assess grip, mechanical slip, electrical resistance or temperature rise using representative components. Certificates, dimensional reports and test records can be supplied when specified in the quality plan.

Yes. Custom designs can address grip ranges, jaw profiles, conductor combinations, bolt quantity, mounting features, current duty, mechanical load, coatings and identification. Conex requires application drawings, materials, sizes, environment, applicable standards, test requirements and quantity to review manufacturability and define a suitable validation plan.

Provide the materials, constructions, profiles and actual dimensions of both gripped elements; connection function; current and fault duty if electrical; pull, shear and vibration loads; environment; hardware and torque requirements; applicable standard; tests, documentation and quantity. Clear interface data ensures the correct jaw and clamping range are proposed.
