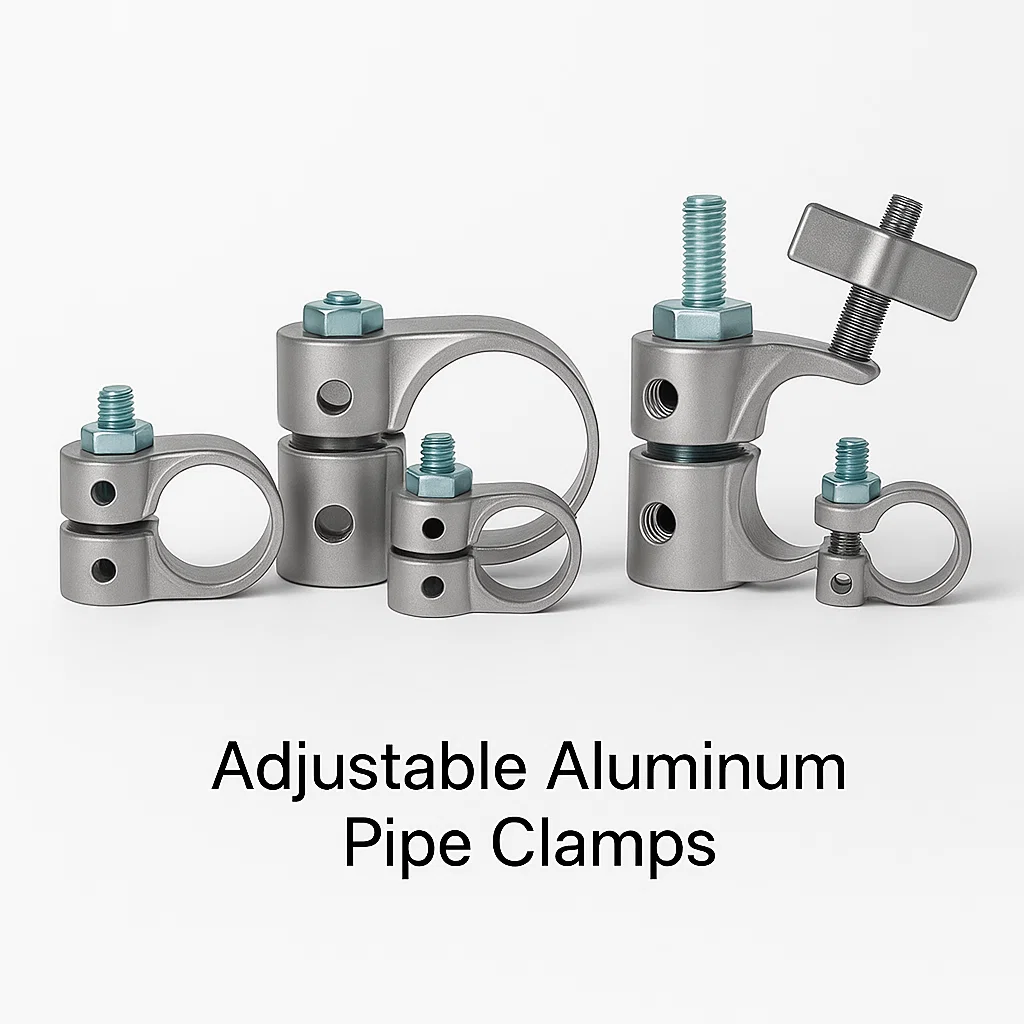

Durable and Precision-Engineered Adjustable Aluminium Pipe Clamps

Selection starts with the pipe’s actual outside diameter, not only its nominal bore. The required adjustment range, liner thickness, installation clearance, mounting-hole pattern and allowable movement must also be considered. Conex reviews the pipe specification and application drawing to confirm that the clamp closes correctly without excessive gap, interference or local crushing of the pipe.

The alloy is selected according to strength, corrosion exposure, formability, machinability, weight and finishing requirements. Engineering aluminium grades can be specified for general industrial or outdoor service, but the final grade and temper should be matched to the clamp geometry and design load. Material requirements and certification should be stated on the enquiry drawing or purchase specification.

An adjustable design can cover a defined diameter range, but it is not unlimited. Excessive adjustment can reduce contact area, misalign the mounting points or concentrate stress on the pipe. Conex can manufacture multiple clamp sizes or a configurable design so each pipe diameter receives secure, even support while maintaining suitable bolt engagement and installation clearance.

Load capacity depends on clamp geometry, alloy and temper, section thickness, fastener size, mounting arrangement, pipe diameter, direction of loading and support spacing. Static weight alone is not sufficient where vibration, impact, pressure pulsation or thermal movement is present. Required design loads and safety factors should be supplied so the clamp can be reviewed for the actual service condition.

Aluminium offers useful corrosion resistance for many outdoor environments, especially when the alloy and surface treatment are selected correctly. Exposure to salt, chemicals, standing water, industrial pollutants and dissimilar metals must still be assessed. Anodising, conversion coating, powder coating, suitable fasteners and isolation materials may be specified to improve durability for the intended environment.

Galvanic corrosion can occur when aluminium contacts a more noble metal in the presence of an electrolyte. Risk can be reduced with compatible fasteners, non-conductive liners, isolating washers, sleeves, sealants or protective coatings, while also preventing trapped moisture. The pipe material, mounting structure, fastener grade and exposure conditions should be identified during design review.

Clamps can be configured for vibrating systems, but vibration level and frequency must be considered. Appropriate support spacing, secure fasteners, sufficient clamp stiffness and resilient liners can reduce movement, noise and surface damage. Severe cyclic loading may require fatigue-focused analysis, locking hardware and periodic inspection rather than treating the clamp as a simple static support.

A piping system normally needs a deliberate combination of fixed points and guides. An adjustable clamp may restrain, guide or permit movement depending on its design, liner and mounting arrangement. Thermal expansion should be calculated from pipe material, length and temperature range. The clamp function must then be defined so unintended axial restraint does not overload the pipe or support structure.

Where needed, liners can protect pipe surfaces, reduce noise, provide electrical isolation and absorb limited vibration. Material selection depends on temperature, chemical exposure, fire requirements, compression set and compatibility with the pipe. Liner thickness must be included when determining the clamp diameter, and the design should prevent the liner from creeping or being extruded under tightening load.

Install clamps on a clean, aligned support using the specified fasteners and tightening sequence. The pipe should sit evenly without forced misalignment, sharp edge contact or excessive compression. Fastener torque must follow the approved design, bolt grade, thread condition and lubrication state. Final checks should confirm alignment, clearance, secure engagement and the intended fixed or sliding function.

Depending on service and appearance requirements, clamps can be supplied as-machined, deburred, polished, anodised, conversion-coated or powder-coated. The specification should define colour, coating thickness, masking areas, electrical-contact surfaces and cosmetic acceptance criteria. Finish selection must also account for alloy compatibility, outdoor exposure, fastener interfaces and any liner or sealing components.

Yes. Customisation can cover pipe-diameter range, clamp width and thickness, mounting holes, slots, hinge details, fastener arrangement, liners, surface treatment and identification marking. A technical drawing or sample should define the pipe, support structure, load direction, environment and installation space. Conex can then review manufacturability before confirming tooling, tolerances and production quantities.

Inspection may include material verification, dimensional checks, hole location, adjustment range, profile, flatness, thread or fastener fit, deburring and surface-finish acceptance. Gauges or sample pipes can be used to confirm functional fit across the specified diameter range. Inspection reports, material certificates and coating documentation can be supplied when agreed in the quality requirements.

Provide the pipe outside diameter and material, adjustment range, clamp drawing or sample, mounting arrangement, expected loads, vibration, operating temperature, environment, fastener specification, liner requirement, surface finish and order quantity. Identifying whether the clamp is a fixed support, guide or vibration-control component helps Conex propose a technically suitable and cost-effective manufacturing route.
